Architrave/Header 3-1/4" - 2

Architrave/Header 3-1/4" - 2

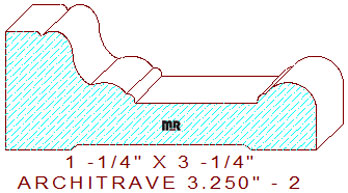

This fancy architrave/casing 3-1/4" - 2 measures 3.250" wide by 1.250" thickness. The bold profile is comprised of a 3/8" wide horizontal line with a 1/16" eased edge, connected to an elevation changing cyma reversa attached to two cascading arcs, joined to a 1-7/32" wide horizontal line in the center with a quarter round bead attached to a 17/32" wide half circle on the thin side of the design. Browse our backout category for a suitable relief cut for this detail, we have a few options to select from.
Learn how to become more efficient while searching over 15,000 patterns in our state-of-the-art profile catalog. Watch the short video on the first page to find design ideas for your next woodworking project; we're sure you will locate the perfect embellished pattern to enhance the architectural style of your beautiful home or office.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.250
Depth of Cut: 1.000
Bottom Cutter Head
Width: 3.250
Depth of Cut: 0.062
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$267.00
$251.00
Total:
$518.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$283.00
$267.00
Total:
$550.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$307.00
$291.00
Total:
$598.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
