Architrave/Header 3-1/2"

Architrave/Header 3-1/2"

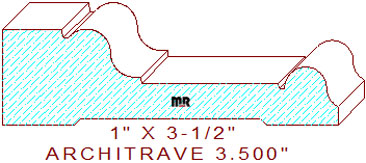

This fancy architrave/casing 3-1/2" measures 3.500" wide by 1.000" thickness, necessitating five-quarter lumber for milling this detail on an industrial machine. The striking profile is composed of a 5/8" wide by 1/16" deep stepped line on the left, connected to a 1/16" wide sunk fillet that transitions into two tangent 1/4" radius semicircles with a 1/16" vertical drop in elevation, joined to a 1-7/16" wide line segment with a 1/16" vertical step that merges with a 1/16" wide sunk fillet and a two tangent radius cyma reversa on the thin side of the pattern. Browse our backout category for a suitable relief cut for this detail, we're confident you will find a functional design to suit your needs.
If you want to add more depth to the detail, try utilizing one of our many different elegant backbands profiles on the outer edge to create a stylish and unique design for your beautiful home or office, or change the search parameters to find a suitable width backband that best fits your architectural style.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.500
Depth of Cut: 0.833
Bottom Cutter Head
Width: 3.500
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
