Architrave/Header 3-1/2" - 1

Architrave/Header 3-1/2" - 1

Architrave/Header 3-1/2" - 1

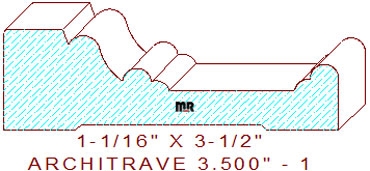

This elegant 3-1/2" - 1 architrave/casing measures 3.500" wide by 1.062" thickness, requiring five-quarter lumber for milling. The beautiful profile is composed of a 43/64" broad horizontal line with a 3/64" eased outer edge, joined to an elevation changing beveled line that transitions into a two tangent radius cyma reversa, connected to a 5/16" wide half round and a 3/16" wide quarter round bead the merges with a 1-5/16" broad line segment then connects to the same semicircles on the thin side of the pattern. Browse our backout category for a suitable relief cut for this detail, we're confident you will find a functional design to suit your needs.

Mirror Reflections has over thirty years of experience in designing and manufacturing some of the finest quality acrylic templates and profile knives in the woodworking industry. Encounter our excellent customer service with affordable pricing by allowing us to demonstrate our abilities; you will be pleasantly impressed with our services.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.500
Depth of Cut: 0.673
Bottom Cutter Head
Width: 3.500
Depth of Cut: 0.062

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$272.50
$255.50
Total:
$528.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$289.50
$272.50
Total:
$562.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$306.50
$289.50
Total:
$596.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
