Architrave/Header 3-1/2" - 10

Architrave/Header 3-1/2" - 10

Architrave/Header 3-1/2" - 10

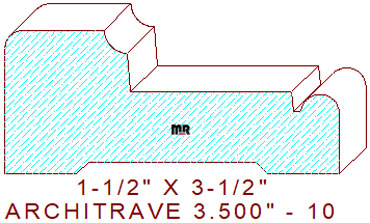

This beautifully bold architrave/casing 3-1/2" - 10 measures 3.500" wide by 1.500" thickness, requiring eight-quarter lumber for milling. The definitive profile is composed of a 1-1/32" broad horizontal line with a 3/16" eased outer edge on the left, connected to a 1/4" cove with a 13/32" vertical drop in elevation that transitions into a 1-11/16" broad line segment in the center, attached to a 3/32" wide by 13/64" deep sunk fillet and a 13/32" wide half circle on the thin side of the design. Browse our backout category for a suitable relief cut for this detail, we're confident you will find a functional design to suit your needs.

We offer thousands of inspirational architectural profiles that will shape the contour of every exquisite room in your client's beautiful home. Download all our free dxf files, and see how easily the services we provide can increase productivity while reducing manufacturing costs.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.500
Depth of Cut: 1.008
Bottom Cutter Head
Width: 3.500
Depth of Cut: 0.125

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$272.50
$255.50
Total:
$528.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$289.50
$272.50
Total:
$562.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$306.50
$289.50
Total:
$596.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
