Architrave/Header 3-1/2" - 15

Architrave/Header 3-1/2" - 15

Architrave/Header 3-1/2" - 15

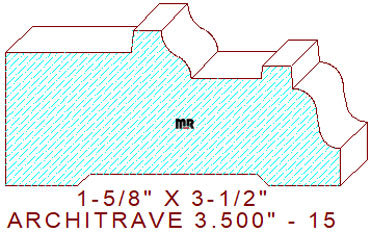

This unique architrave/header 3-1/2" - 15 measures 3.500" wide by 1.625" thickness, enabling the pattern to be milled from eight-quarter lumber. The interesting profile could also be utilized as a backer for crown molding buildups. It consists of a 1-5/16" wide by 15/64" deep notch on the left side, attached to a 5/16" broad line segment with a two tangent radius cyma recta that transitions into a 47/64" wide sunk fillet, connected to a 5/16" wide by 1/8" tall raised fillet with a high two tangent radius cyma reversa leaving a 25/64" thickness dimension on the thin side of the pattern. Browse our backout category for a suitable relief cut for this detail, we're confident you will find a functional design to suit your needs.

Utilize any of our patterns to create a stylish profile catalog for your millwork company, or connect our catalog to your website; this will enable you to offer more eye-catching pattern to your clients while reducing production cost spent on layout & design. Let us help you in the transformation of that beautiful house being constructed into an elegant home.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.516
Top Cutter Head
Width: 3.500
Depth of Cut: 0.500
Bottom Cutter Head
Width: 3.500
Depth of Cut: 0.125

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$161.75
$255.50
$255.50
Total:
$672.75
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$171.25
$272.50
$272.50
Total:
$716.25
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$180.75
$289.50
$289.50
Total:
$759.75
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
