Architrave/Header 3-1/2" - 8

Architrave/Header 3-1/2" - 8

Architrave/Header 3-1/2" - 8

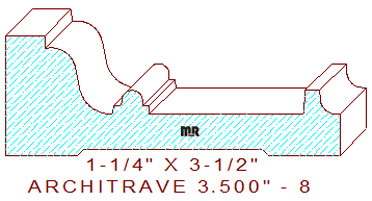

This definitive architrave/header/casing 3-1/2" - 8 measures 3.500" wide by 1.250" thickness. The fancy profile is comprised of a 3/8" wide stepped fillet attached to a deep sloping cyma reversa joined with a half round bead flanked by two small stepped fillets that connect to a 1-5/8" wide sunk fillet with a raised fillet and cavetto positioned on the thin side of the pattern. Searching for other design ideas for your elegant home, we have over 15,000 alternative profile options, altering the search features to view.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.500
Depth of Cut: 0.822
Bottom Cutter Head
Width: 3.500
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$272.50
$255.50
Total:
$528.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$289.50
$272.50
Total:
$562.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$306.50
$289.50
Total:
$596.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
