Architrave/Header 3-5/8" - 1
Architrave/Header 3-5/8" - 1

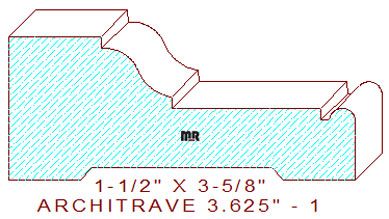

This lovely architrave/header/casing 3-5/8" - 1 measures 3.625" wide by 1.500" thickness. The distinguished profile is comprised of a 31/32" wide by 1/8" deep stepped fillet attached to an elevation changing cyma reversa joined to a 1-1/2" broad straight line that transitions into a 1/8" wide by 1/8" deep sunk fillet with a 1/4" wide half-circle located on the thin side of the profile. Need this profile template and a set of custom knives quickly? We can generally have these cutters ground with our premium quality high-speed steels or carbide and shipped within twenty-four hours.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.625
Depth of Cut: 1.046
Bottom Cutter Head
Width: 3.625
Depth of Cut: 0.125
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$288.00
$270.50
Total:
$558.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$305.50
$288.00
Total:
$593.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$331.75
$314.25
Total:
$646.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
