Architrave/Header 3-3/4" - 2
Architrave/Header 3-3/4" - 2

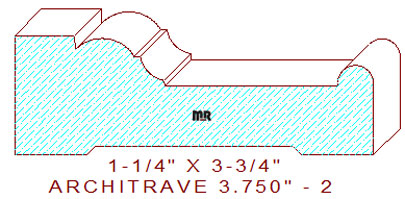

This artistic architrave/header/casing 3-3/4" - 2 measures 3.750" wide by 1.250" thickness. The inspiring profile comprises a 5/8" wide stepped fillet attached to a radius arc, and cavetto joined to a 1-13/16" broad straight flat line with a 3/8" wide half-circle located on the thin side of the detail. We have artistic profiles from several different architectural eras; literally, thousands of compelling designs help match your creative style.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.750
Depth of Cut: 0.625
Bottom Cutter Head
Width: 3.750
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$277.00
$277.00
Total:
$554.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$295.00
$295.00
Total:
$590.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$322.00
$322.00
Total:
$644.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
