Architrave/Header 4" - 1
Architrave/Header 4" - 1

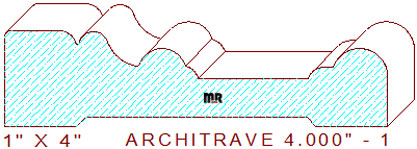

This extravagant architrave/header 4" - 1 measures 4.000" wide by one-inch thickness, permitting the use of five-quarter lumber for milling on industrial equipment. The ornate profile is composed of a 3/4" broad line segment with a 1/16" eased outer and a 3/16" rounded inner edge on the top left, attached to a short two tangent radius cyma reversa merged with a 31/64" wide half-round and 9/64" quarter round bead in the center, connected to a 1-9/64" wide sunk fillet joined to a 17/64" rounded edge and a 9/16" wide half-circle on the right side of the design.
Architects, interior designers, contractors, lumber mills, and manufacturers have been utilizing our wide variety of designs for years, we trust you will find that unique profile to enhance the architectural style of your client's home or office. Download all our free Dxf files, and see how easily the services we provide can increase productivity while simultaneously reducing manufacturing costs.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.000
Depth of Cut: 0.625
Bottom Cutter Head
Width: 4.000
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$290.00
$290.00
Total:
$580.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$309.00
$309.00
Total:
$618.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$337.50
$337.50
Total:
$675.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
