Architrave/Header 4" - 13

Architrave/Header 4" - 13

Architrave/Header 4" - 13

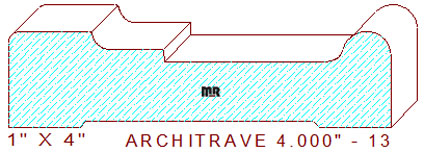

This custom architrave/header/casing 4" - 13 measures 4.000" wide by 1.000" thickness. The modest profile comprises a 1/8" radius edge fillet connected to a 3/16" radius congee attached to a reversed direction stepped congee tangent off a 1/4" radius half circle on the opposite edge. We have thousands of available profiles with skilled woodworkers, architects, and interior designers; find yours now.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.000
Depth of Cut: 0.424
Bottom Cutter Head
Width: 4.000
Depth of Cut: 0.062

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$280.50
$280.50
Total:
$561.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$299.50
$299.50
Total:
$599.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$318.50
$318.50
Total:
$637.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
