Architrave/Header 4" - 15

Architrave/Header 4" - 15

Architrave/Header 4" - 15

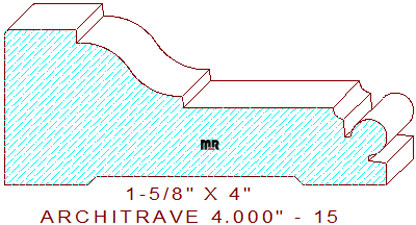

This aesthetically pleasing architrave/header 4.000" - 15 measures 4.000" wide by 1.625" thickness, necessitating the use of eight-quarter lumber for milling on an industrial molder. The visually striking profile is composed of a 3/4" wide by 1/8" tall raised fillet with a 1/16" eased outer edge on the top left, connected to a deep down-sloping two tangent radius ogee with another 1/8" vertical step and a 1-9/16" broad flat line segment in the center, attached to a 1/8" cove and a 3/16" deep by 1/16" wide sunk fillet merged with a 3/8" pencil bead and another identical sunk fillet with a 1/4" vertical line segment on the right side of the design.

We're delighted you found a functional profile that interests you; please consider all the other services we offer for your precision woodworking company. Mirror Reflections offers hundreds of tooling supplies for your industrial machinery and knife grinding room. If you're new to the industry, read some of our informational articles ; they will help you get started with all the basics. We have a shared passion for excellence and our quest to be paramount artisans for all our clients.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.187
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.000
Depth of Cut: 1.125
Bottom Cutter Head
Width: 4.000
Depth of Cut: 0.093

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$161.75
Not Needed
$299.50
$280.50
Total:
$741.75
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
Not Needed
$318.50
$299.50
Total:
$789.25
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
Not Needed
$337.50
$318.50
Total:
$836.75
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
