Architrave/Header 4" - 17
Architrave/Header 4" - 17

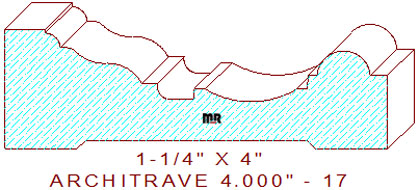

This distinguished architrave/header 4" - 17 measures 4.000" wide by 1.250 thickness, requiring six-quarter lumber for milling on an industrial molder. The beautifully stylish profile is composed of a 7/16" wide flat line with a 3/64" vertical step and an 11/64" quarter round arc on the top left, connected to a three tangent radius wave-like down-sloping semicircular arcs merged with a 5/32" flat line and a 3/8" wide congee derived from a 5/32" cove in the center, joined to a 61/64" wide scotia flanked by small lines that connect to a towering 9/16" half round bead bordered by flat lines, leaving a 49/64" thickness on the right side of the design.
Custom-made elegance is a phrase used to define the beauty, style, and artisanship of thousands of our profile designs. Whether you own a recently built house or older style residence, we have the ability, knowledge, and experience to create profiles that will complement the architectural decor of your elegant home or office.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.000
Depth of Cut: 0.753
Bottom Cutter Head
Width: 4.000
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$310.00
$291.00
Total:
$601.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$329.00
$310.00
Total:
$639.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$357.50
$338.50
Total:
$696.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
