Architrave/Header 4-1/4" - 1

Architrave/Header 4-1/4" - 1

Architrave/Header 4-1/4" - 1

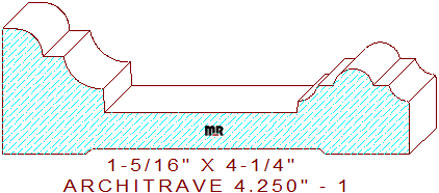

This embellishing architrave/header 4-1/4" - 1 measures 4.250" wide by 1.312" thickness, allowing the pattern to be milled from six-quarter lumber. The lavish profile is composed of a 9/64" wide line segment tangent to a 9/32" convex quarter-round arc on the top left, connected to a 7/32" broad line segment and an 11/32" cove with a 1/4" drop-in elevation that joins to a two-inch-wide sunk fillet in the center, merged with a 1/8" up-sloped vertical line and a 7/32" cove that attaches to a 27/64" wide half round bead flanked by 5/32" wide fillets, and another 7/32" cove with a 3/64" eased edge on the right side of the design.

Increase search efficiency while looking over 15,000 profile designs in our state-of-the-art molding catalog. Watch the short video on the first page to find design ideas for your next woodworking project; we're sure you will locate the perfect embellished pattern to enhance the architectural style of your beautiful home or office.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.250
Depth of Cut: 0.948
Bottom Cutter Head
Width: 4.250
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$313.00
$293.00
Total:
$606.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$333.00
$313.00
Total:
$646.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$353.00
$333.00
Total:
$686.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
