Architrave/Header 4-1/4" - 2

Architrave/Header 4-1/4" - 2

Architrave/Header 4-1/4" - 2

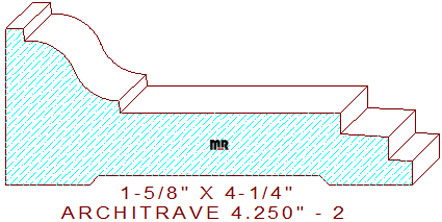

This decorative architrave/header 4-1/4" - 2 measures 4.250" wide by 1.625" thickness, necessitating the use of eight-quarter lumber for milling on industrial machinery. The custom profile is composed of a 3/16" wide by 1/8" tall raised fillet on the left, merged with an elevation changing two tangent radius cyma reversa with a 1/8" vertical step, attached to a 2-5/16" broad line segment in the center with three drops in elevation, leaving a 1/4" thickness dimension on the right side of the pattern. The knives' cut depth is too large for most production machines. The profile design is split to manufacture the stepped outer portion on the left cutter head and the remaining detail on the top horizontal cutter head.

Our precise cad drawings contain plenty of important information that will assist you during the setup and milling of this detail. Our acrylic templates provide good blend areas on the knives, so you will never realize where one cutter begins or ends; these specific design features will substantially increase yield during the milling process.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.750
Top Cutter Head
Width: 4.250
Depth of Cut: 0.875
Bottom Cutter Head
Width: 4.250
Depth of Cut: 0.093

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$171.25
$313.00
$293.00
Total:
$777.25
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$180.75
$333.00
$313.00
Total:
$826.75
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$190.25
$353.00
$333.00
Total:
$876.25
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
