Architrave/Header 4-1/4" - 3

Architrave/Header 4-1/4" - 3

Architrave/Header 4-1/4" - 3

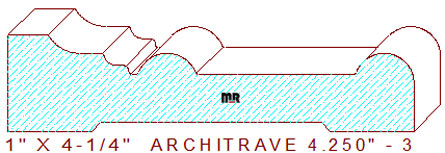

This enchanting architrave/header 4-1/4" - 3 measures 4.250" wide by 1.000" thickness, allowing the pattern to be machined out of five-quarter lumber. The beautifying profile is composed of 27/64" broad flat line on the top left, joined to a 9/16" wide congee made from a 25/64" concave semicircle, and a 9/64" cove with a 1/16" rounded edge that transitions into a 3/32" wide sunk fillet, merged with a 5/8" wide convex half-round arc, and a 1-5/8" wide sunk fillet in the center, with another 5/8" wide three quarter round bead on the right side of the design.

Looking for that particular profile to enhance the architectural style of your current project, send us a sketch, custom profile design is our specialty. Experience the elegant beauty we can create together from your outlined idea concepts and our vast knowledge of the woodworking industry.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.000
Depth of Cut: 0.625
Bottom Cutter Head
Width: 4.000
Depth of Cut: 0.093

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$280.50
$280.50
Total:
$561.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$299.50
$299.50
Total:
$599.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$318.50
$318.50
Total:
$637.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
