Architrave/Header 4-3/4"

Architrave/Header 4-3/4"

Architrave/Header 4-3/4"

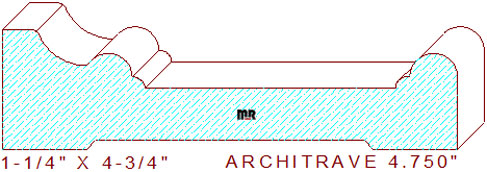

This custom architrave/header 4-3/4" measures 4.750" wide by 1.250" thickness requiring six-quarter lumber to be used to mill this pattern on an industrial molder. The designer profile is comprised of a 3/8" broad straight line with a 3/32" radius edge that transitions into a 35/64" cove on the taller side, connected to a half and quarter round semicircular beads that join to a 2-5/8" wide sunk fillet in the center, attached to another set of the quarter and half-round circles on the right side of the design. We offer an alternative profile in a larger size width with similar design characteristics for your review and consideration, architrave 5.250" - 8, this detail can be machined out to five quarter lumber.

Custom-made elegance is a phrase used to define the beauty, style, and artisanship of thousands of our layout designs. Whether you own a recently built house or an older-style residence, we have the ability, knowledge, and experience to create profiles that will complement the architectural decor of your elegant home or office.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.750
Depth of Cut: 0.625
Bottom Cutter Head
Width: 4.750
Depth of Cut: 0.094

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$318.00
$318.00
Total:
$636.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$340.00
$340.00
Total:
$680.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$362.00
$362.00
Total:
$724.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
