Architrave/Header 4-3/4" - 1

Architrave/Header 4-3/4" - 1

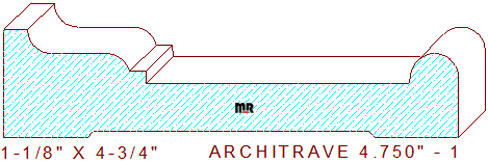

This beautiful architrave/header 4-3/4" - 1 measures 4.750" wide by 1.125" thickness requiring five-quarter lumber to mill this pattern on industrial machinery. The lovely profile is comprised of a 1/4" broad straight line joined to a bidirectional congee consisting of 1/4" radius coves on the tall side, connected to an 11/64" wide by 1/8" deep step that transitions into a 2-3/4" wide sunk fillet in the center with a 1/2" wide half circle on the 7/8" side of the design. Browse our backout category for a suitable relief cut for this detail, we have a few options to select from.
With over 15,000 profile designs in our search-by-size profile catalog, there is something for everyone's creative architectural style. Utilize our manufacturers map listed by states to help you locate a mill in your area to produce this creative pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.750
Depth of Cut: 0.656
Bottom Cutter Head
Width: 4.750
Depth of Cut: 0.062
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$351.00
$329.00
Total:
$680.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$373.00
$351.00
Total:
$724.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$406.00
$384.00
Total:
$790.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
