Architrave/Header 4-3/4" - 2

Architrave/Header 4-3/4" - 2

Architrave/Header 4-3/4" - 2

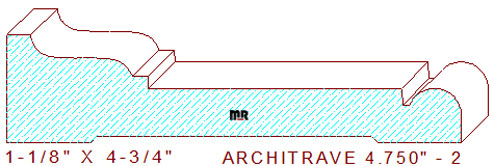

This elegant architrave/header 4-3/4" - 2 measures 4.750" wide by 1.125" thickness requiring five-quarter lumber to mill this pattern on an industrial machine. The creative profile is comprised of a 1/4" broad horizontal line joined to a three tangent radius bidirectional congee on the taller side of the pattern, connected to a 5/32" wide by 1/8" deep step that transitions into a 2-41/64" broad straight line in the center, merged with an 11/64" deep vertical drop attached to a small sunk fillet and a 17/32" wide half circle on the thin side of the design. Browse our backout category for a suitable relief cut for this detail, we have a few options to select from.

Looking for that unique pattern to enhance the architectural style of your current project? Please send us a sketch; custom profile design is our specialty. Experience the beauty we can create together from your outlined ideas and our vast knowledge of the woodworking industry.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.750
Depth of Cut: 1.000
Bottom Cutter Head
Width: 4.750
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$340.00
$318.00
Total:
$658.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$362.00
$340.00
Total:
$702.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$384.00
$362.00
Total:
$746.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
