Architrave/Header 4-13/16"

Architrave/Header 4-13/16"

Architrave/Header 4-13/16"

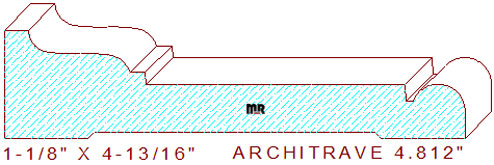

This distinctive architrave/header 4-13/16" measures 4.812" wide by 1.125" thickness requiring at least five-quarter lumber to mill this pattern on an industrial machine. The attractive profile is comprised of a 1/4" broad horizontal line that connects to a three tangent radius cyma recta with an 11/64" wide by 1/8" deep step, joined to a 2-23/32" wide straight line that transitions into a 7/32" deep by 5/64" wide sunk fillet with a 17/32" wide half circle on the thin side of the design. Browse our backout category for a suitable relief cut for this detail, we have a few options to select from.

You will be able to manufacture high-speed steel or carbide profile knives literally within minutes after downloading this beautiful door header. Check out our updated tooling and supplies catalog for other high-quality products we supply for your machinery and knife grinding room, all with reasonable pricing.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.812
Depth of Cut: 1.000
Bottom Cutter Head
Width: 4.812
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$343.35
$321.10
Total:
$664.45
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$365.60
$343.35
Total:
$708.94
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$387.84
$365.60
Total:
$753.44
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
