Architrave/Header 5"

Architrave/Header 5"

Architrave/Header 5"

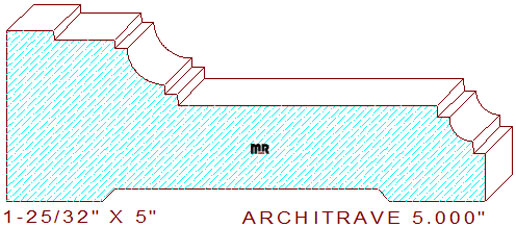

This beautifully bold architrave/header 5" measures 5.000" wide by 1.781" thickness, allowing the detail to be milled from eight-quarter lumber. The lovely profile is composed of a series of different-sized stepped lines and notches that connect to a 29/64" cove in the left section, joined to a 2-23/32" wide line segment in the middle, attached to two 1/8" wide by 1/8" deep notches divided by a 1/4" radius cove, leaving a 1/2" thickness dimension on the right side of the pattern. Explore our backout category for an appropriate relief cut for the bottom of this detail, we're confident you will find a suitable design to suit your needs.

Are you a manufacturer? If so, please add your company to our millwork suppliers map. This valuable resource will help potential customers experience the craftsmanship of your creative woodworking shop. Did you know you can connect our substantial moulding catalog to your website? It's free; offer your clients profile designs they don't even know exist.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.718
Depth of Cut: 0.500
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.000
Depth of Cut: 0.781
Bottom Cutter Head
Width: 5.000
Depth of Cut: 0.125

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.40
Not Needed
$353.50
$330.50
Total:
$850.40
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.27
Not Needed
$376.50
$353.50
Total:
$906.27
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$186.14
Not Needed
$399.50
$376.50
Total:
$962.14
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
