Architrave/Header 5" - 1

Architrave/Header 5" - 1

Architrave/Header 5" - 1

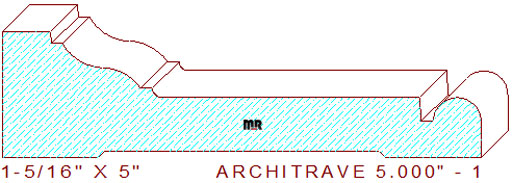

This custom architrave/header 5" - 1 measures 5.000" wide by 1.312" thickness enabling this pattern to be milled from six-quarter lumber. The designer profile is comprised of a 1/2" broad straight line with a 1/8" wide by 1/8" deep notch, attached to a downward sloping two tangent radius cyma recta with a 1/8" horizontal line that transitions into a 2-13/16" wide congee made from a 3/32" radius cove, connected to a 1/4" deep by 1/8" wide sunk fillet with a 1/2" wide half round bead on the thin side of the design. Browse our backout category for a suitable relief cut for this detail, we have a few options to select from.

Learn how to become more efficient while searching over 15,000 designs in our state-of-the-art profile catalog. Watch the short video on the first page to find design ideas for your next woodworking project; we're sure you will locate the perfect embellished pattern to enhance the architectural style of your beautiful home or office.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.000
Depth of Cut: 1.088
Bottom Cutter Head
Width: 5.000
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$353.50
$330.50
Total:
$684.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$376.50
$353.50
Total:
$730.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$399.50
$376.50
Total:
$776.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
