Architrave/Header 5-1/8"
Architrave/Header 5-1/8"

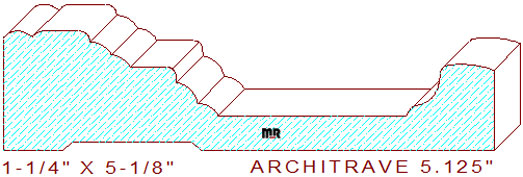

This aesthetically pleasing architrave/door header 5-1/8" measures 5.125" wide by 1.250" thickness, allowing the pattern to be milled from six-quarter lumber. The fancy profile is composed of a thumbnailed shaped arc joined to a 5/8" wide line segment on top, connected to two cascading round over beads that merge with a 31/64" wide by 5/32" deep stepped line, attached to two more cascading quarter circles that transitions into a 1-31/32" wide sunk fillet, joined to a 7/64" tall angled line with a 17/64" cove and a one-inch radius arc on the right side of the pattern.
Custom-made elegance is a phrase used to define the beauty, style, and artisanship of thousands of our layout designs. Whether you own a recently built house or an older-style residence, we have the ability, knowledge, and experience to create profiles that will complement the architectural decor of your elegant home or office.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.125
Depth of Cut: 0.885
Bottom Cutter Head
Width: 5.125
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$372.00
$348.50
Total:
$720.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$395.50
$372.00
Total:
$767.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$430.75
$407.25
Total:
$838.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
