Architrave/Header 5-1/4" - 2

Architrave/Header 5-1/4" - 2

Architrave/Header 5-1/4" - 2

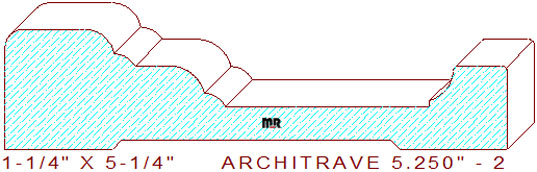

This elegant architrave/header 5-1/4" - 2 measures 5.250" wide by 1.250" thickness, requiring the use of six-quarter lumber for milling on an industrial machine. The beautiful profile is composed of a 1-9/64" wide by 1/4" tall raised fillet with a 3/16" eased outer and a 5/16" rounded inner edge on the top left, connected to a series of three cascading downward rounded steps that join to a 2-1/8" wide sunk fillet in the center, merged with a 1/16" tall vertical line joined to an 11/32" cove and a 9/16" wide raised fillet with 3/64" eased edges on the right side of the design.

Custom-made elegance is a phrase used to define the beauty, style, and artisanship of thousands of our profile designs. Whether you own a recently built house or older style residence, we have the ability, knowledge, and experience to create profiles that will complement the architectural decor of your elegant home or office.

For knife quoting purposes, click to open the calculator below; we have added only the important measurements; enter the appropriate dimension in the boxes provided. A brief detailed explanation of how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction-decimal-millimeter chart and place it around the shop to help operators save time and increase accuracy during machine setup.

Width = 5.250" / Depth of Cut = .803" (top knives) & .093" (bottom cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.250
Depth of Cut: 0.803
Bottom Cutter Head
Width: 5.250
Depth of Cut: 0.093

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$367.00
$343.00
Total:
$710.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$391.00
$367.00
Total:
$758.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$415.00
$391.00
Total:
$806.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
