Architrave/Header 5-1/2"

Architrave/Header 5-1/2"

Architrave/Header 5-1/2"

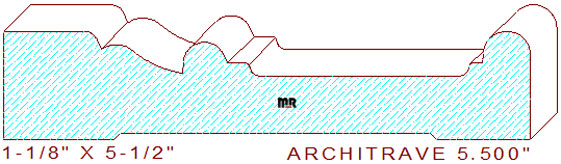

This aesthetically pleasing architrave/header 5-1/2" measures 5.500" wide by 1.125" thickness, requiring at least five or six-quarter lumber for milling. The fashionable profile is composed of a 1-1/64" broad line with a 5/32" quarter round arc tangent off of a small angled line on the left. connected to a small two tangent radius cyma recta that transitions into a 15/32" wide half round bead with a 15/64" broad line segment, attached to a bidirectional congee made from two 7/64" coves that merge with a 9/64" wide piece and a 1/2" wide half-circle on the right side of the pattern. Explore our backout category for an appropriate relief cut for the bottom side of this detail, we're confident you will find a functional design to suit your needs.

Custom-made elegance is a phrase used to define the beauty, style, and artisanship of thousands of our profile designs. Whether you own a recently built house or older style residence, we have the ability, knowledge, and experience to create profiles that will complement the architectural decor of your elegant home or office.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.500
Depth of Cut: 0.466
Bottom Cutter Head
Width: 5.500
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$355.50
$355.50
Total:
$711.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$380.50
$380.50
Total:
$761.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$405.50
$405.50
Total:
$811.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
