Architrave/Header 5-1/2" - 6

Architrave/Header 5-1/2" - 6

Architrave/Header 5-1/2" - 6

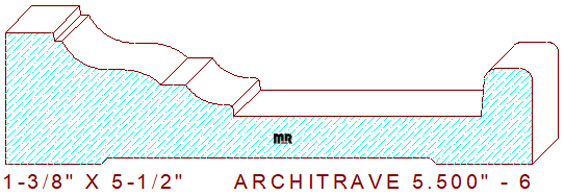

This creative architrave/header 5-1/2" - 6 measures 5.500" wide by 1.375" thickness requiring at least six-quarter lumber to mill the pattern on an industrial molder. The striking profile is comprised of a 1/2" broad segment with a 3/32" wide by 3/32" deep notch on the taller side, connected to a two tangent radius cyma recta that joins to a 1/4" broad line and a 15/32" cove with a 1/8" vertical step, attached to a 2-19/32" wide sunk fillet and a 17/32" wide raised fillet with 1/8" eased edges at a 1" thickness dimension. Browse our backout category for a suitable relief cut for this detail, we have a few options to select from.

Need this profile template and a set of knives quickly? We generally can have these cutters ground with any one of our premium quality high-speed steels or carbide and shipped within twenty-four hours. We have artistic profiles from several different architectural eras; thousands of compelling designs to help match your creative style.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.500
Depth of Cut: 0.875
Bottom Cutter Head
Width: 5.500
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$380.50
$355.50
Total:
$736.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$405.50
$380.50
Total:
$786.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$430.50
$405.50
Total:
$836.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
