Architrave/Header 5-1/2" - 9

Architrave/Header 5-1/2" - 9

Architrave/Header 5-1/2" - 9

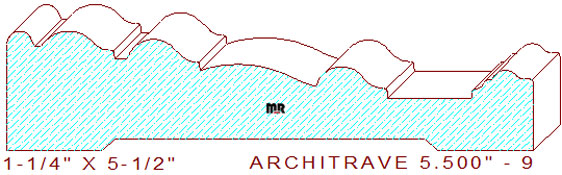

This ornate architrave/header 5-1/2" - 9 measures 5.500" wide by 1.250" thickness, allowing the pattern to be machined out of six-quarter lumber. The detailed profile is comprised of a 19/64" wide half-round bead and a 1/16" sunk fillet on the top left, attached to two short cascading ogees divided by a 9/64" sunk fillet that joins to a 1-1/4" convex arc in the center. It merges with another tiered cyma reversa connected to a 7/8" wide sunk fillet that transitions into a small cove joined with a fillet and small ogee with a 3/64" eased edge, leaving a 3/4" thickness dimension on the right side of the design.

Custom-made elegance is a phrase used to define the beauty, style, and artisanship of thousands of our moulding designs. Whether you own a recently built house or an older-style residence, we have the ability, knowledge, and experience to create visually stunning molding profiles that will complement the architectural decor of your elegant home or office.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.500
Depth of Cut: 0.703
Bottom Cutter Head
Width: 5.500
Depth of Cut: 0.125

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$380.50
$355.50
Total:
$736.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$405.50
$380.50
Total:
$786.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$430.50
$405.50
Total:
$836.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
