Architrave/Header 5-5/8" - 1
Architrave/Header 5-5/8" - 1

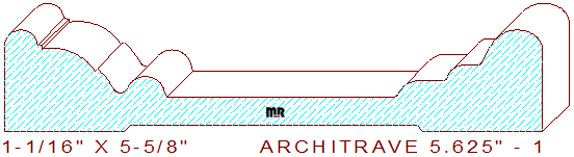

This creative5-5/8" - 1 architrave/header measures 5.625" wide by 1.062" thickness, allowing the detail to be milled from five-quarter lumber. The beautiful profile composes an 11/32" wide half-round bead with a tiny step and a 36/64" radius arc on the left, connected to a small up-sloping beveled line that transitions into a small scotia with a 13/32" wide half-circle, attached to a 2-3/8" wide sunk fillet in the center that joins to two upward steps with rounded edges and a two tangent radius half-circle on the right side of the pattern. Browse our backout category for an appropriate relief cut for the bottom of this detail; we're confident you will find a suitable design to match your needs.
Custom-made elegance is a phrase used to define the beauty, style, and artisanship of thousands of our moulding designs. Whether you own a recently built house or an older style residence, we have the ability, knowledge, and experience to create profiles that will complement the architectural decor of your elegant home or office.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.625
Depth of Cut: 0.703
Bottom Cutter Head
Width: 5.625
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$400.00
$374.50
Total:
$774.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$425.50
$400.00
Total:
$825.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$463.75
$438.25
Total:
$902.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
