Architrave/Header 6"

Architrave/Header 6"

Architrave/Header 6"

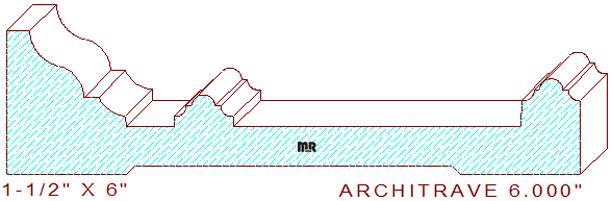

This aesthetically pleasing architrave 6" measures 6.000" wide by 1.500" thickness forcing the pattern to be milled from eight-quarter lumber. The creative profile is comprised of two tangent radius cyma recta flanked by horizontal fillets connected into a 21/64" cavetto with an attached 1/2" wide sunk fillet that transitions into two towering flat astragal details separated by a 3" broad straight flat line positioned slightly off center leaving a 25/32" thickness dimension on the smaller side of the design. Browse our backout category for a suitable relief cut for this detail, we're confident you will find the right one to suit your needs.

We offer thousands of inspirational architectural profiles that will shape the contour of every exquisite room in your client's beautiful home. Download all our free moulding dxf files, and see how easily the services we provide can increase productivity while reducing manufacturing costs.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 6.000
Depth of Cut: 1.000
Bottom Cutter Head
Width: 6.000
Depth of Cut: 0.094

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$407.50
$380.50
Total:
$788.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$434.50
$407.50
Total:
$842.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$461.50
$434.50
Total:
$896.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
