Architrave/Header 6" - 1

Architrave/Header 6" - 1

Architrave/Header 6" - 1

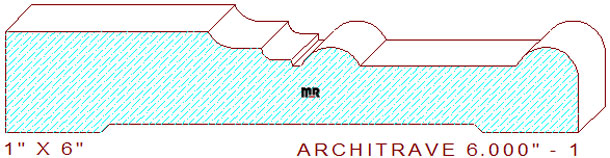

This elegant architrave/header 6" - 1 measures 6.000" wide by 1.000" thickness allowing the pattern to be milled from five-quarter lumber. The attractive profile is comprised of a 2-1/8" broad straight line connected to two cascading congee made from a 19/64" and 1/8" radius coves, connected to a small vertical bar that transitions into a 3/32" wide sunk fillet and a 1-41/64" broad horizontal line flanked by 5/8" wide half circles. Browse our backout category for a suitable relief cut for this detail, we're confident you will find the right one to suit your needs.

Thinking about building an enclosed tool room for the profile knife grinder, template-making machine, and a place to store all your moulding templates and knives? Please read our helpful commentary on securing the knife grinder's linear bearings, /a> this small, simple task can save you thousands of dollars in repair costs from not securing the table bearings before moving.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 6.000
Depth of Cut: 0.625
Bottom Cutter Head
Width: 6.000
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$380.50
$380.50
Total:
$761.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$407.50
$407.50
Total:
$815.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$434.50
$434.50
Total:
$869.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
