Architrave Moulding 6-1/4" - 1

Architrave Moulding 6-1/4" - 1

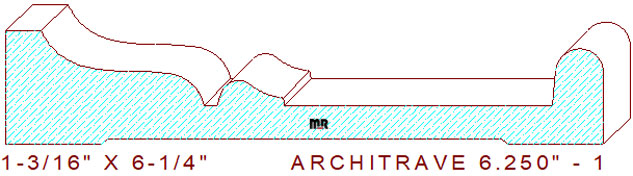

This attractive architrave moulding 6-1/4" - 1 measures 6.250" wide by 1.187" thickness requiring the pattern be milled from six quarter lumber. The lovely profile is comprised of a 3/8" wide horizontal line that transitions into a three tangent radius cyma recta, joined to a 9/64" wide sunk fillet that connects to an 11/16" wide cyma reversa with a tiny vertical step, attached to a 2-13/16" wide sunk fillet with a towering 17/32" wide half round circle on the smaller side of the design. Browse our backout category for a suitable relief cut for this detail, we’re confident you will find the right one to suit your needs.

With over 15,000 profile designs in our search by size moulding catalog there is something for everyone’s creative architectural style. Utilize our manufacturers map listed by states to help you locate a mill in your area to produce this creative pattern.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 6.250" / Depth of Cut = .778" (top knives) & .063" (bottom cutters.)

Profile Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
