Architrave/Header 6-1/4" - 2

Architrave/Header 6-1/4" - 2

Architrave/Header 6-1/4" - 2

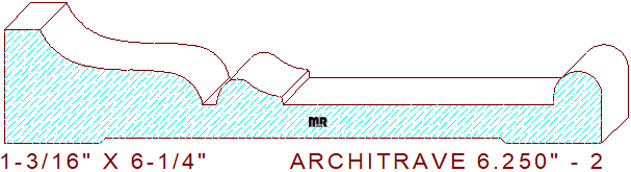

This magnificently elegant architrave 6-1/4" - 2 measures 6.250" wide by 1.187" thickness allowing the pattern to be milled from six-quarter lumber. The graceful profile is composed of a 3/8" broad horizontal line on the left, connected to an elevation changing four tangent radius cyma recta that joins to a 9/64" wide sunk fillet and a small cyma reversa with a 5/64" vertical step, attached to a 2-53/64" broad line segment and a 1/2" wide half circle at a 3/4" thickness dimension on the right side of the pattern. Browse our backout category for a suitable relief cut for this detail, we're confident you will find a functional design to suit your needs.

Mirror Reflections has over thirty years of experience in designing and manufacturing some of the finest quality acrylic templates and profile knives in the woodworking industry. Encounter our excellent customer service with affordable pricing by allowing us to demonstrate our abilities; you will be pleasantly impressed with our services.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 6.250
Depth of Cut: 0.938
Bottom Cutter Head
Width: 6.250
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$421.00
$393.00
Total:
$814.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$449.00
$421.00
Total:
$870.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$477.00
$449.00
Total:
$926.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
