Wall/Partition Cap 3" - 15

Wall/Partition Cap 3" - 15

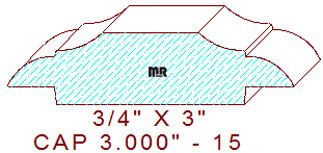

This wall cap measures 3" wide by 3/4" thick. The symmetrical design is composed of a 1" wide fillet in the center; a vertical fillet separates a concave and convex arc on both sides of the center. The bottom is rabbeted 1/2" wide by 3/16" tall on both sides, leaving 2" in width to be inserted in the wall partition that it is capping.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
