Wall/Partition Cap 3-1/8" - 1

Wall/Partition Cap 3-1/8" - 1

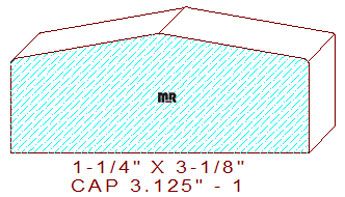

This wall cap measures 3-1/8" wide by 1-1/4" thick. The profile is composed of a 1/8" radius circle at the center peak; it is attached to a ten-degree angle on each side, creating a splay face in both directions with a 1/16" radius on the edges to provide a smooth and comfortable surface when someone places their hand on the product, it will also reduce the possibility of receiving a wooden splinter when grasping.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
