Wall/Partition Cap 3-3/8"
Wall/Partition Cap 3-3/8"

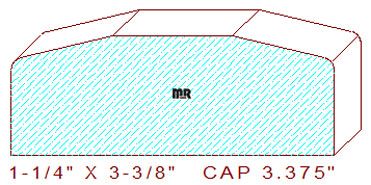

This wall/partition cap 3-3/8" measures 3.375" wide by 1.250" thickness; this detail will require six-quarter lumber to mill this pattern. The profile is composed of a 1-1/4" wide fillet in the center that chamfers outward in both directions from the center to a 1" thickness, it retains 1/8" radius side edges for comfort and to aid in the finishing process.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
