Panel Cap 3-1/2"
Panel Cap 3-1/2"

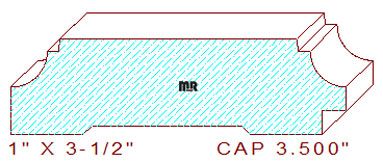

This panel cap 3-1/2" measures 3.500" wide by 1.000" thickness. The symmetrical profile is comprised of a 2-1/2" wide fillet in the center, which is flanked by a 1/8" wide by 1/8" deep stepped fillet with an attached 3/8" radius cove on each of the side edges.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
