Wainscot Cap 3-1/2" - 4

Wainscot Cap 3-1/2" - 4

Wainscot Cap 3-1/2" - 4

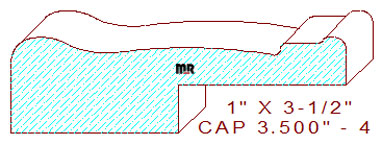

This decorative wainscot cap 3-1/2" - 4 measures 3.500" wide by 1.000" thickness. The fancy profile is comprised of a combination of graceful rolling arches and concave arcs to create a beautiful design in the upper portion, the lower section consists of a small 1/16" radius congee with a 1/8" eased edge, the bottom rabbet dimension is 1-3/4" wide by 1/2" deep.

Our high-precision templates and knives include the required draft angles to maintain the ability to sharpen the blades properly without modifying the detail while simultaneously prolonging the milling time between sharpening whether you own a Weinig, Wadkin, Leadermac, SCM, Diehl, Homag, Shop Fox, or Williams & Hussey machinery, our cutters will mill flawlessly on them all.

For knife quoting purposes click to open the calculator below; we have added only the important measurements; enter the appropriate dimension in the boxes provided. A brief detailed explanation of how to use the calculator is located here.

Width = 3.500" / Depth of Cut = .375" (top knives) & .500" (bottom cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
