Rail Cap 3-1/2" - 7

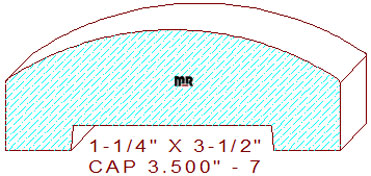

This radius top rail cap 3-1/2" - 7 measures 3.500" wide by 1.250" thickness. The arched profile is comprised of a 3-5/32" rounded top with 1/16" eased edges leaving a 3/4" thickness dimension on the sides, the bottom dado dimension is 2-1/8" wide by 1/4" deep leaving an 11/16" wide horizontal line on each side.

With over 15,000 profile designs in our search by size moulding catalog, there is something for everyone’s creative architectural style. Utilize our manufacturers map listed by states to help you locate a mill in your area to produce this creative pattern.

For knife quoting purposes, click to open the calculator below; we have added only the important measurements; enter the appropriate dimension in the boxes provided. A brief detailed explanation of how to use the calculator is located here.

Width = 3.500" / Depth of Cut = .750" (top knives) & .250" (bottom cutters.)
