Wall/Partition Cap 4" - 5
Wall/Partition Cap 4" - 5

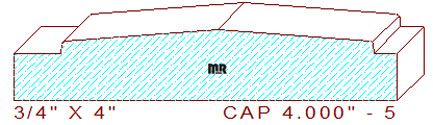

This wall/partition cap 4" - 5 measures 4.000" wide by .750" thickness. The design consists of a 4-1/2 degree angled top that steps downward 1/8" to a fillet; the profile looks symmetrical, but it is not one fillet is 1/4" wider.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
