Partition/Wall Cap 4-1/2" - 8
Partition/Wall Cap 4-1/2" - 8

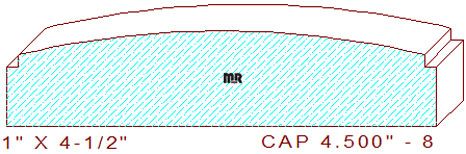

This partition/wall cap 4-1/2" - 8 measures 4.500" wide by 1.000" thick. The profile has a slightly radiused top with a 1/8" X 1/8" quirk on both edges of the bottom of the profile, used mainly to cap the top of a partitioned wall.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
