Partition/Wall Cap 4-3/4"

Partition/Wall Cap 4-3/4"

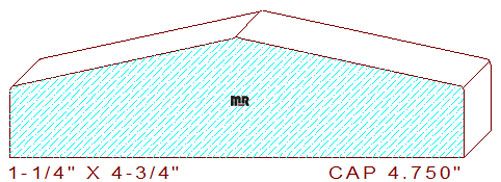

This partition/wall cap measures 4-3/4" wide by 1-1/4" thick. The profile begins in the center with a 1/16" radius at the thickest part of the design. It then angles outward and downward roughly 12.2 degrees to an edge thickness of 3/4". All exposed edges retain a 1/16" radius. This will omit any possibilities of being cut or splintered from running a hand across the surface and aid in the finishing process.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
