Partition/Wall Cap 5-1/2" - 3
Partition/Wall Cap 5-1/2" - 3

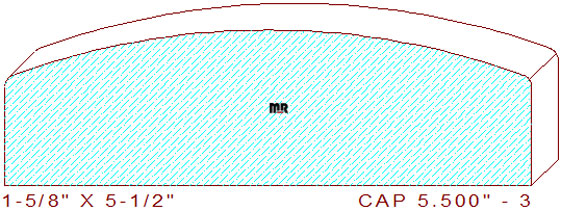

This beautiful 5-1/2" - 3 partition/wall cap measures 5.500" wide by 1.625" thickness, permitting the detail to be machined out of eight-quarter lumber. The graceful rounded top profile is composed of a 7-13/16" convex semicircular arc on the top, tangent to a 1/8" round-over on both sides, leaving a 1-5/32" thickness dimension on each side edge of the design.
We're delighted you found a beautiful profile that interests you; please consider all the other services we offer for your precision woodworking company. Mirror Reflections offers hundreds of tooling supplies for your industrial molder and knife grinding room. If you're new to the industry, read some of our informational articles ; they will help you get started with all the basics. We share a passion for excellence and a quest to be a premier craftsman for all our talented clients.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.500
Depth of Cut: 0.750
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$394.00
Not Needed
Total:
$394.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$419.00
Not Needed
Total:
$419.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$456.50
Not Needed
Total:
$456.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
