Wall/Partition Cap 5-1/2" - 6
Wall/Partition Cap 5-1/2" - 6

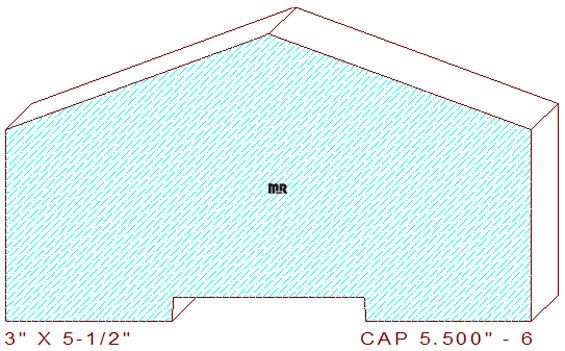

This bidirectional 5-1/2" - 6 beveled wall/partition cap measures 5.500" wide by 3.000" thickness, the top of the profile has a bidirectional twenty-degree angle with a 1/16" radius at the point, the sides have 2" tall vertical fillets, and the bottom has a dado that measures 2" wide by 1/4" tall.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
