Partition/Wall Cap 5-1/2" - 8

Partition/Wall Cap 5-1/2" - 8

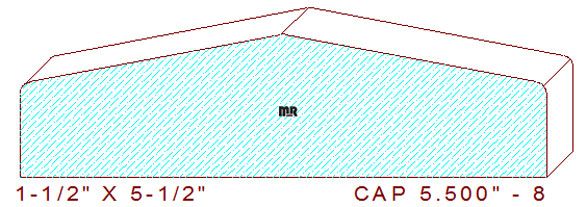

This partition/wall cap measures 5-1/2" wide by 1-1/2" thick. The profile consists of an eleven and three-quarter degree angle; from the center, it travels in opposite directions 2-3/4" broad and downward 1/2", leaving 1" thickness on the sides. The top and both sides of the pattern have 1/8" radius eased edges to prevent people from receiving splinters when in contact with the cap, it also aids in the finishing process, used as a decorative cap or cover of partitions on walls.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
