Fence Cap 5-1/2" - 9

Fence Cap 5-1/2" - 9

Fence Cap 5-1/2" - 9

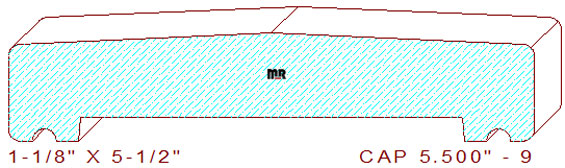

This useful fence cap 5-1/2" - 9 measures 5.500" wide by 1.125" thickness, allowing the pattern to be machined out of five or six-quarter lumber. The functional profile is composed of a barely noticeable 1/8" radius on the top center, tangent to two bidirectional two-and-one half-degree angled lines with 1/8" rolled edges that transitions the thickness to one inch on the sides. The bottom of the pattern can cap a four-inch piece of lumber, it consists of a 4" wide by 1/4" deep dado with a 1/4" wide concave semicircle to act as a drip edge for moisture when installed, flanked by 1/4" wide lines segment and a 1/8" rounded edge on each side of the design. You may want to review and consider another smaller style of fence cap with a rounded top for capping a 3-7/16" wide piece of lumber, fence cap 4.687".

Architects, interior designers, contractors, lumber mills, cabinet shops, and manufacturers have been utilizing our wide variety of moulding designs for years, we trust you will find that special profile to enhance the architectural style of your client's home or office. Download all our free dxf files, and see how easily the services we provide can increase productivity while simultaneously reducing manufacturing costs.

For moulding knife quoting purposes, click to open the calculator below; we supplied only the important measurements and entered the appropriate dimension in the boxes provided. A brief detailed explanation of how to use the calculator is located here.

Width = 5.500" / Depth of Cut = .427" (top knives) & .250" (bottom cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
