Partition/Wall Cap 5-3/4" - 1
Partition/Wall Cap 5-3/4" - 1

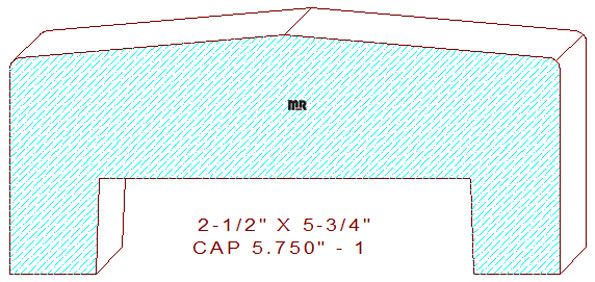

This partition/wall cap measures 5-3/4" wide by 2-1/2" thick. The design is composed of two five-degree angles on top. A 1/8" radius eases the edges, and the bottom is plowed 3-7/8" wide by 1" tall for a wall partition to fit into.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
