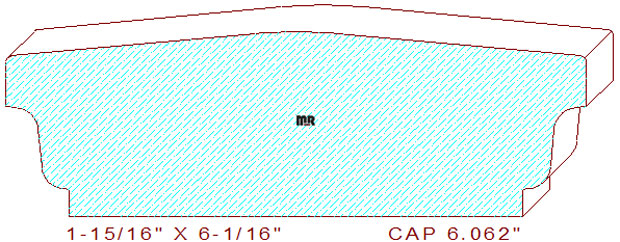

The symmetrical profile is comprised of a five and one-quarter degree bidirectional beveled top, the sides are composed of a 9/32" tall vertical fillet on the bottom, connected to a cyma recta consisting of two tangent 1/4" radius partial circles, attached to a 17/32" elevated eased edge vertical fillet.
Our precise cad drawings contain plenty of important information that will assist you during the setup and milling of this moulding profile. Our acrylic templates also provide good blend areas on the knives, so you will never realize where one moulding cutter begins or ends; this specific design feature will substantially increase product yield during the milling process.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
