Wall/Partition Cap 6-3/4" - 1

Wall/Partition Cap 6-3/4" - 1

Wall/Partition Cap 6-3/4" - 1

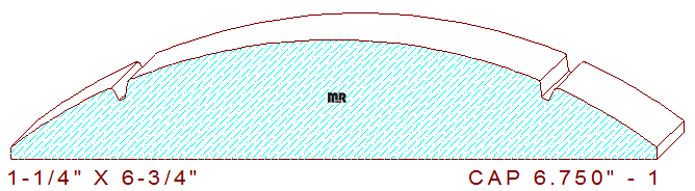

This symmetrical wall or partition cap measures 6-3/4" wide by 1-1/4" thick. It will require six-quarter of lumber to mill this pattern on the machinery. The profile consists of a 5-5/8" radius arc with 1/8" thick side edges with two evenly spaced quirks in the design positioned at the 3/4" thickness mark.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
