Partition/Wall Cap 7" - 4

Partition/Wall Cap 7" - 4

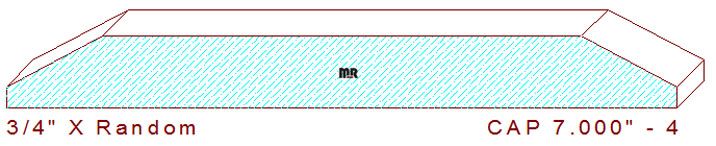

This partition/wall cap measures 3/4" in thickness. Widths are adjustable to desired sizes. The design consists of a 7/32" flat vertical fillet on both edges and a sixty-two-degree bevel that protrudes a distance of 1" from each side of the profile.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
