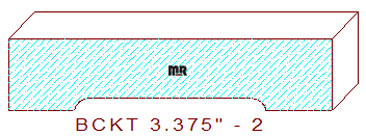

This Backout/Relief Cut Moulding Knife Design 3-3/8" - 2 measures 3.375" wide, with a .125" depth of cut on the bottom horizontal moulding cutters.
This profile can be used on many of our smaller width baseboards, medium sized casing, and chair rail mouldings. The design layout is comprised of a 2" wide by 1/8" deep plow, flanked by 5/32" radius quarter round circles that transition into 11/16" wide straight fillets on each side. The maximum width this knife can mill is 4-1/8" wide, with the bottom moulder spindle positioned at .000" axially.
We provide the cut steel size on all our moulding knife designs, this specialized feature allows you to be able to have the correct size bar of knife steel in house, before you start knife grinding procedures and moulding production.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
