Backout/Relief Cut 3-5/8"

Backout/Relief Cut 3-5/8"

Backout/Relief Cut 3-5/8"

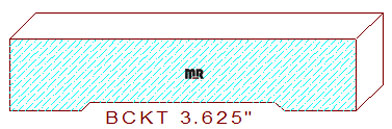

This backout 3-5/8" measures 3.625" wide. This detail can be used to mill relief cuts on many of our smaller width baseboards, medium-sized casing and chair rails. The symmetrical design is comprised of a 2-1/8" wide by 3/32" deep plow flanked by forty-five-degree bevels that transition into 3/4" wide straight fillets on each side of the pattern. This backout knife's maximum width is 4-3/8" wide when the bottom cutterhead is positioned at .000" axially.

Try one of our 125% concentration ultimate Borazon grinding wheels; finish grinding at 3000 rpm, with a twenty-degree back clearance angle, will create a superior micro edge on all your high-speed steel knives. During the milling process, these cutters will be capable of milling some of the finest quality architectural patterns you have ever milled.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 3.625
Depth of Cut: 0.094

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
Not Needed
$261.75
Total:
$261.75
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
Not Needed
$279.25
Total:
$279.25
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
Not Needed
$296.75
Total:
$296.75
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
